SAS.Planet is a free application used to view and download satellite images submitted by such services as Google Maps, Bing Maps, Yandex.maps, Yahoo! Maps and many more.

The satellite images can be downloaded and then loaded into OCAD as georeferenced background maps.

We can recommend the following workaround:

1. Download SAS.Planet from the web and run the application.

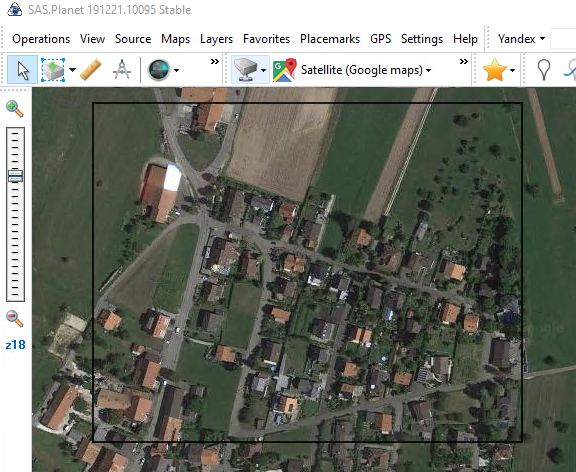

2. Zoom to your desired location and select an extend.

Vector Maps: Download Georeferenced Satellite Images | OCAD Blog

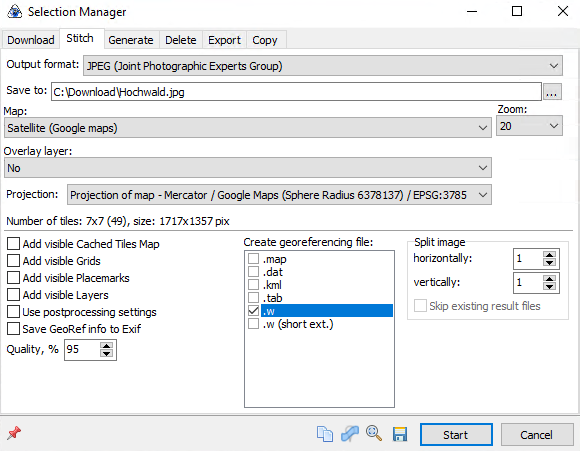

3. Open the Selection Manager and edit the tab Stitch. Don’t forget to create a file for georeferencing. We’ve chosen the settings as follows.

Vector Maps: Download Georeferenced Satellite Images | OCAD Blog

4. Start the download.

5. Open a map project in OCAD. Your map needs to be georeferenced. To georeference a new map, you can use the New Map Wizard.

6. Go to Menu Background>Manage>Open.

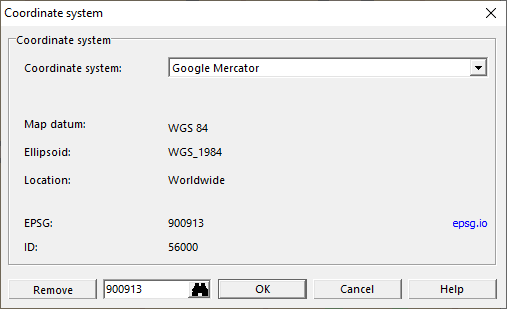

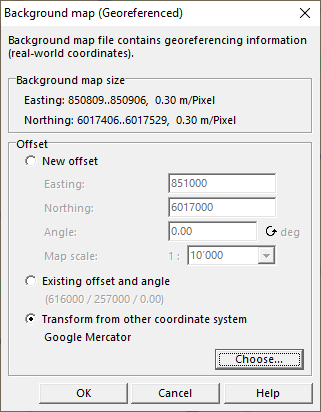

7. Choose your downloaded satellite images. As they most probably do not have the same coordinate system as your map project, you need to transform the satellite images. Choose Google Mercator as coordinate system.

Vector Maps: Download Georeferenced Satellite Images | OCAD Blog
Vector Maps: Download Georeferenced Satellite Images | OCAD Blog

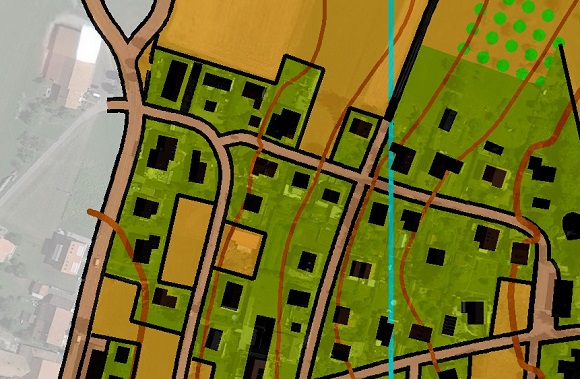

8. Click OK and the satellite images appear as georeferenced background maps.

Vector Maps: Download Georeferenced Satellite Images | OCAD Blog



This entry was posted in OCAD 11, OCAD 2018, Uncategorized and tagged Background Maps, Orienteering Map Making on by OCAD Team.
